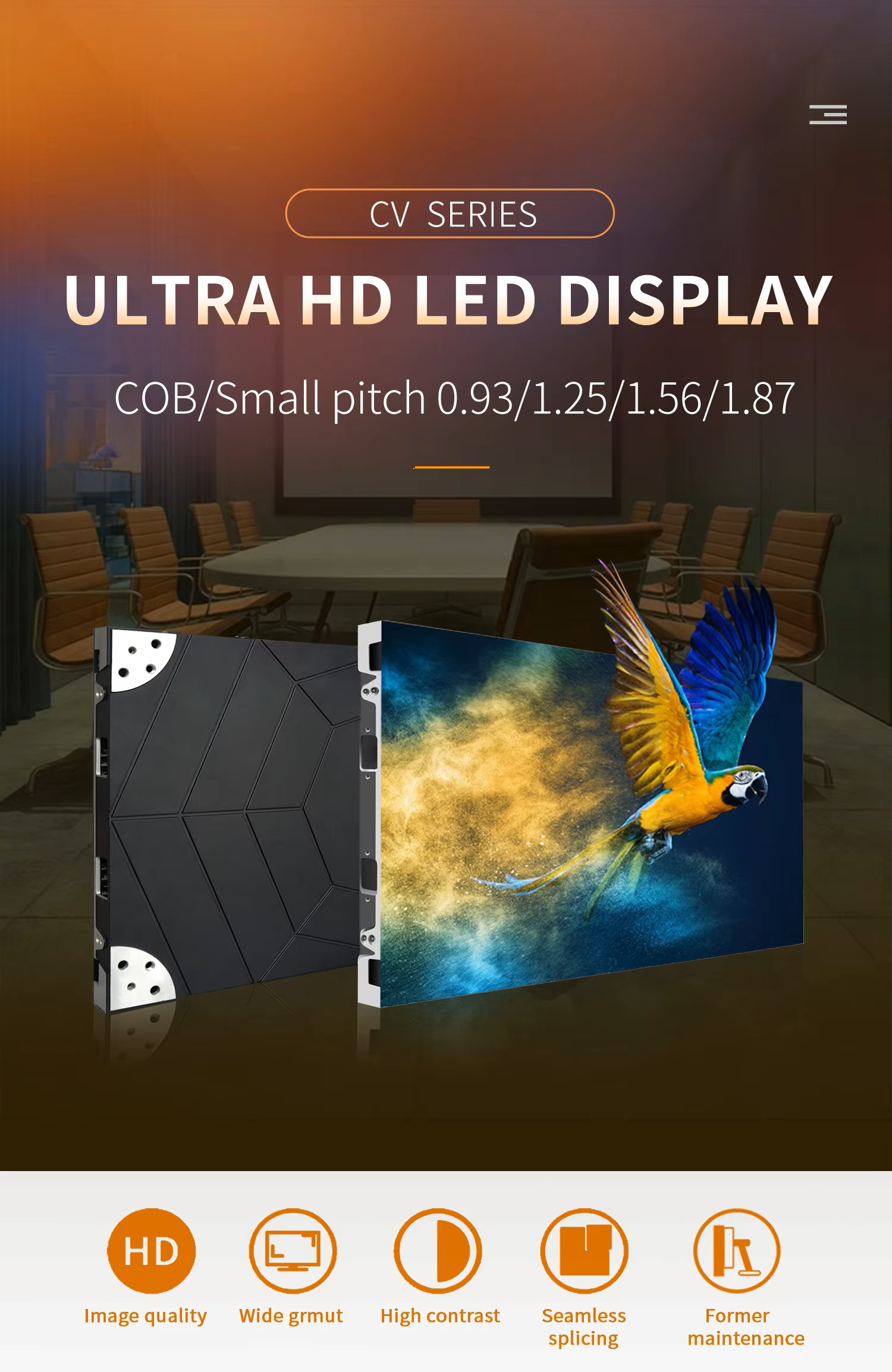

Pixel Pitch(mm)

0.9375

1.25

1.56

1.87

LED Type

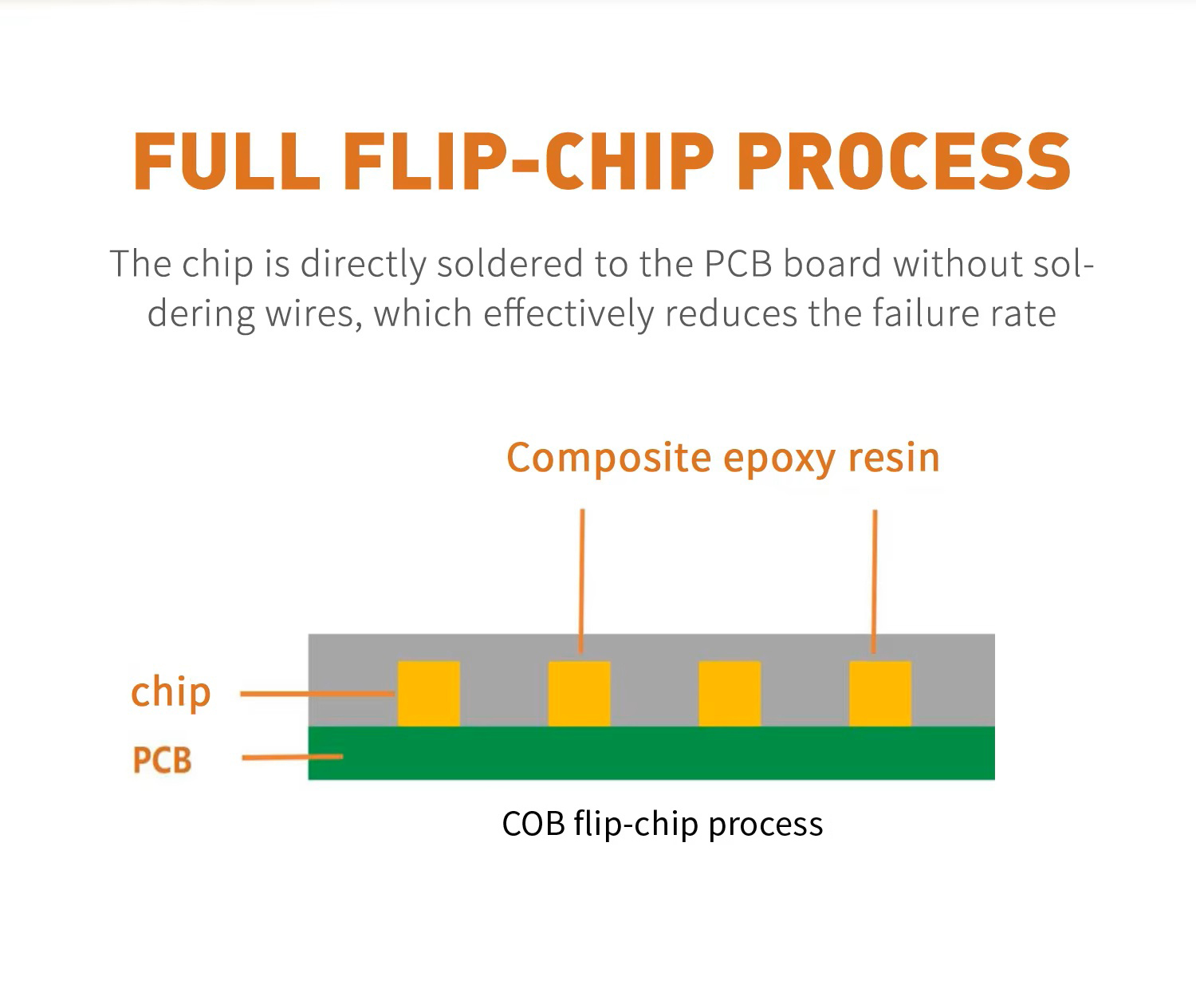

Flip Chip COB Common--Cathode

Pixel Density(pixles/m )

1,137,778

6,400,00

409,600

284,444

Brightness

500-1200 cd/㎡

Scan

1/60

1/45

1/48

1/30

Refresh Rate (Hz)

>3840

Cabinet Resolution (W*H)

640x360

480*270

384*216

320*180

Cabinet Size (mm)

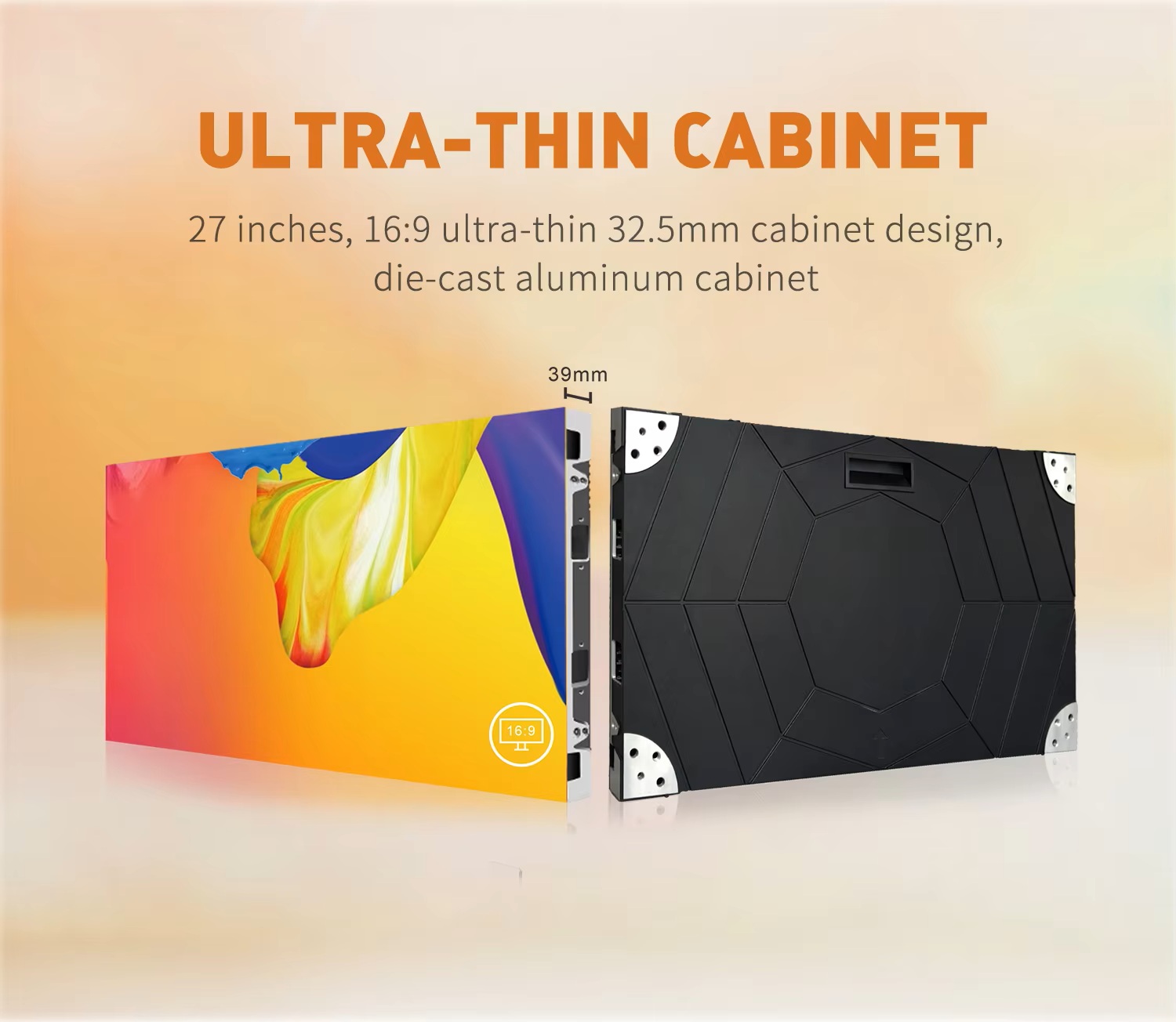

Die casting aluminum cabinet 600 x 337.5 x 32.5mm

Module Size (mm)

150*168.75

Weight (Ib/cabinet)

7.5KG

Maintenance method

Front

Horizontal / Vertical Viewing Angle

170°/170°

Gray Scale

14~16

Colour Temp

3200~9300

Contrast Ratio

>10,000:1

Input Signal

HDMI, DVI/VGA.RGBHV Composite,S- VIDEO,YPbPr(HDTV) etc...

dot by dot color calibration

YES

brightness calibration

YES

Module power supply voltage DC

DC2.8V+3.8V

Max Power Consumption(W/m )

≤300

Avg. Power consumption(W/m )

≤100
