LED Trailer Screen

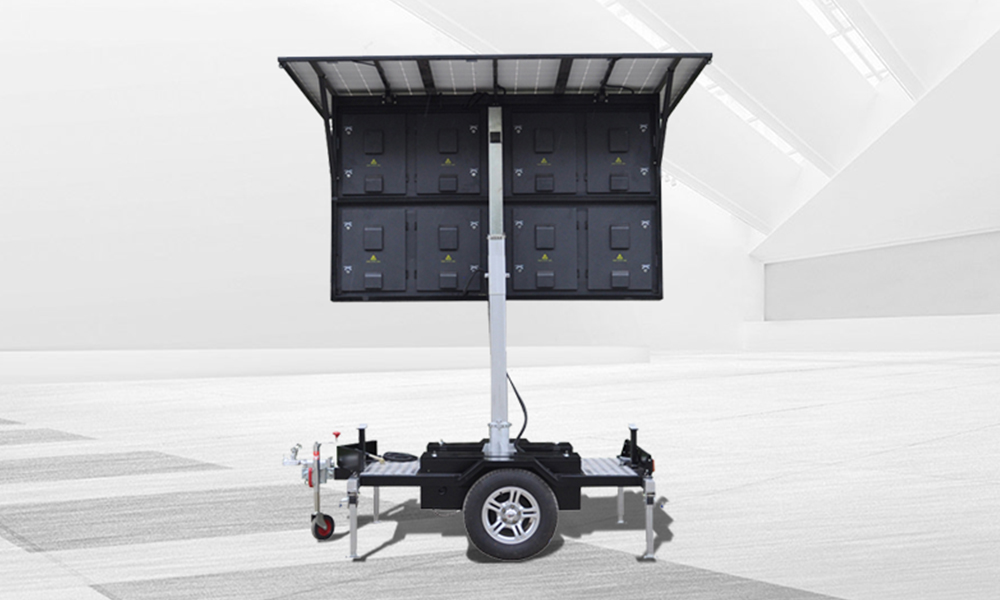

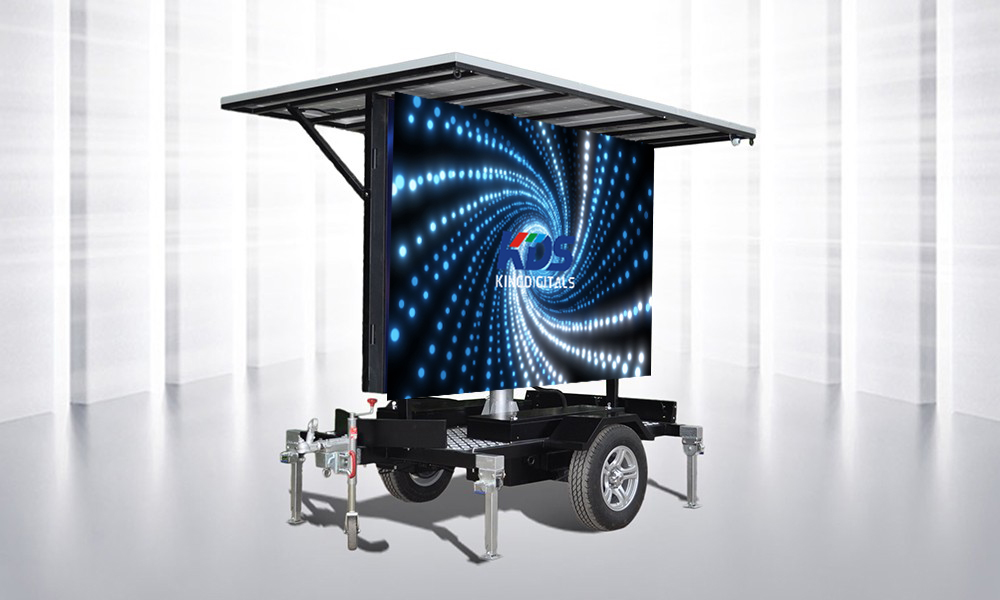

KDS-F4 LED Trailer Screen With Solar system
Solar independent power supply, uninterrupted battery life; environmental protection and energy saving
Main Specificatoin
| Model | KDS-F4 LED TRAILER SCREEN With Solar Panel | |||
| Chassis | ||||
| Brand | KDS | External Dimension | 2700mm(L)×1800mm(W)×2600mm(H) | |
| Brake | Handle/Hydraulic | Tire | Solid rubber tires | |
| Supporting legs | 4pcs | |||
| LED energy saving screen | ||||
| Screen SIZE | 2560mm(W)*1600mm(H) | Dot Pitch | 10 mm | |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥6000cd/ m² | |
| Max Power Consumption | 150w/㎡ | Lifespan | 100,000hours | |
| Hydraulic lifting System | ||||
| Hydraulic Lifting System | Lifting Range 1000mm | |||
| Hydraulic Rotating System | Screen can rotate 360degrees | |||
| Wing-against Level | Against Level 8wind after screen lift up 1000mm | |||
| Power parameter | ||||
| Power System | 48V，50AH | battery life | ≥6hours | |
| Inverter | 2000W | coulombmeter | 1 | |
| Input Voltage | 220V | Output Voltage | 48V | |
| Current | 15A | Average power consumption | 0.5kwh/㎡ | |
| Solar Panel | 1000*2000mm*3 | |||
| Multimedia Control System | ||||
| Optional configuration | LED Screen& Battery power & mechanical transmission is optional | |||
